Patchkabel-Selektor
teilweise nicht verfügbar, bitte sprechen Sie uns wegen eines Alternativproduktes an: 06134 288 288
*Ihr gesuchtes Kabel ist nicht dabei? Bitte rufen Sie uns an unter 06134 288 288!

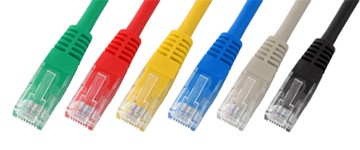

Cat. 5e Patchkabel U/UTP 100 MHz PVC
| Länge | grau | gelb | grün | rot | schwarz | blau |
| 1 m | K8456.1 | K8095.1 | K8093.1 | K8096.1 | K8098.1 | |
| 2 m | K8456.2 | K8095.2 | K8093.2 | K8098.2 | K8094.2 | |
| 3 m | K8456.3 | K8095.3 | K8093.3 | K8096.3 | K8098.3 | K8094.3 |
| 5 m | K8456.5 | K8095.5 | K8093.5 | K8096.5 | K8098.5 | K8094.5 |
| 10 m | K8456.10 | K8095.10 | K8098.10 | K8094.10 | ||
| 15 m | K8456.15 | K8095.15 | K8093.15 | K8098.15 | K8094.15 | |
| 20 m | K8456.20 | K8095.20 | K8093.15 | K8096.20 | K8098.20 | |
| 25 m | K8456.25 | K8095.25 | K8094.25 |
1 Gigabit Ethernet Patchkabel, ungeschirmt
2 RJ45 Stecker, IEC 60603
U/UTP 4 x 2 x AAWG24/7 PVC
Kabeldurchmesser: 5,4mm
Flammwidrig IEC 60332-1
Belegung: nach TIA/EIA 568B
Umspritze Knickschutzhülle ohne Klinkenschutz

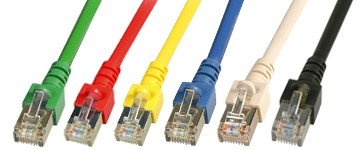

Cat. 5e Patchkabel SF/UTP 100 MHz
| Länge | grau | gelb | grün | rot | schwarz | blau |
| 1 m | K5455.1 | K5457.1 | K5460.1 | K5458.1 | K5456.1 | K5459.1 |
| 2 m | K5455.2 | K5457.2 | K5460.2 | K5458.2 | K5456.2 | K5459.2 |
| 3 m | K5455.3 | K5457.3 | K5460.3 | K5458.3 | K5456.3 | K5459.3 |
| 5 m | K5455.5 | K5457.5 | K5460.5 | K5458.5 | K5456.5 | K5459.5 |
| 10 m | K5455.10 | K5457.10 | K5460.10 | K5458.10 | K5456.10 | K5459.10 |
| 15 m | K5455.15 | K5457.15 | K5460.15 | K5458.15 | K5456.15 | K5459.15 |
| 20 m | K5455.20 | K5457.20 | K5460.20 | K5458.20 | K5456.20 | K5459.20 |
| 25 m | K5455.25 | K5457.25 | K5460.25 | K5458.25 | K5456.25 | K5459.25 |
| 30 m | K5455.30 | K5457.30 | K5460.30 | K5458.30 | K5456.30 | K5459.30 |
Belegung nach TIA/EIA 568B
Flammwidrig IEC 60332-1
Umspritzte Knickschutztülle mit Klinkenschutz

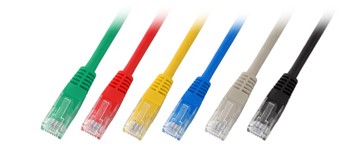

Cat. 6 Patchkabel U/UTP 250 MHz PVC
| Länge | grau | gelb | grün | rot | schwarz | blau |
| 1 m | K8100GR.1 | K8100GE.1 | K8100GN.1 | K8100RT.1 | K8100SW.1 | K8100BL.1 |
| 2 m | K8100GR.2 | K8100GE.2 | K8100GN.2 | K8100RT.2 | K8100SW.2 | K8100BL.2 |
| 3 m | K8100GR.3 | K8100GE.3 | K8100GN.3 | K8100RT.3 | K8100SW.3 | K8100BL.3 |
| 5 m | K8100GR.5 | K8100GE.5 | K8100GN.5 | K8100RT.5 | K8100SW.5 | K8100BL.5 |
| 10 m | K8100GR.10 | K8100GE.10 | K8100GN.10 | K8100RT.10 | K8100SW.10 | K8100BL.10 |
| 15 m | K8100GR.15 | K8100GE.15 | K8100GN.15 | K8100RT.15 | K8100SW.15 | K8100BL.15 |
| 20 m | K8100GR.20 | K8100GE.20 | K8100GN.20 | K8100RT.20 | K8100SW.20 | K8100BL.20 |
Belegung nach TIA/EIA 568B
Flammwidrig IEC 60332-1
Umspritzte Knickschutztülle mit Klinkenschutz

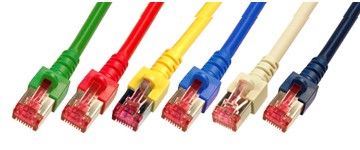

Cat. 6 Patchkabel S/FTP 250 MHz
| Länge | grau | gelb | grün | rot | schwarz | blau |
| 1 m | K5510.1 | K5511.1 | K5514.1 | K5512.1 | K5515.1 | K5513.1 |
| 2 m | K5510.2 | K5511.2 | K5514.2 | K5512.2 | K5515.2 | K5513.2 |
| 3 m | K5510.3 | K5511.3 | K5514.3 | K5512.3 | K5515.3 | K5513.3 |
| 5 m | K5510.5 | K5511.5 | K5514.5 | K5512.5 | K5515.5 | K5513.5 |
| 10 m | K5510.10 | K5511.10 | K5514.10 | K5512.10 | K5515.10 | K5513.10 |
| 15 m | K5510.15* | K5511.15* | K5514.15 | K5512.15 | K5515.15 | K5513.15* |
| 20 m | K5510.20 | K5511.20* | K5514.20 | K5512.20 | K5515.20 | K5513.20* |
| 25 m | K5510.25 | K5511.25* | K5514.25 | K5512.25 | K5515.25 | K5513.25* |
| 30 m | K5510.30 | K5511.30 | K5514.30 | K5512.30 | K5515.30* | K5513.30 |
Belegung nach TIA/EIA 568B
Flammwidrig IEC 60332-1
Halogenfrei IEC 60754-2
Raucharm IEC 61034
Umspritzte Knickschutztülle mit Klinkenschutz

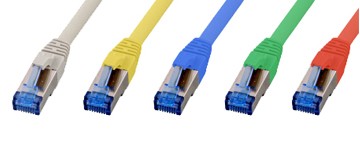

Cat. 6A Patchkabel S/FTP Cat. 7 Rohkabel TPE Superflex 500MHz
| Länge | grau | gelb | grün | rot | schwarz | blau |
| 0,25 m | K5525FGR.0,25 | K5525FGE.0,25 | K5525FGN.0,25* | K5525FRT.0,25* | K5525FSW.0,25 | K5525FBL.0,25 |
| 0,5 | K5525FGR.0,5 | K5525FGE.0,5 | K5525FGN.0,5* | K5525FRT.0,5 | K5525FSW.0,5* | K5525FBL.0,5 |
| 1 m | K5525FGR.1 | K5525FGE.1 | K5525FGN.1 | K5525FRT.1 | K5525FSW.1 | K5525FBL.1 |
| 2 m | K5525FGR.2 | K5525FGE.2 | K5525FGN.2* | K5525FRT.2 | K5525FSW.2 | K5525FBL.2 |
| 3 m | K5525FGR.3 | K5525FGE.3* | K5525FGN.3* | K5525FRT.3 | K5525FSW.3 | K5525FBL.3 |
| 5 m | K5525FGR.5 | K5525FGE.5* | K5525FGN.5* | K5525FRT.5 | K5525FSW.5 | K5525FBL.5 |
| 10 m | K5525FGR.10 | K5525FGE.10* | K5525FGN.10 | K5525FRT.10 | K5525FSW.10 | K5525FBL.10* |
| 15 m | K5525FGR.15* | K5525FGE.15* | K5525FGN.15* | K5525FRT.15* | K5525FSW.15 | K5525FBL.15 |
| 20 m | K5525FGR.20 | K5525FGE.20 | K5525FGN.20* | K5525FRT.20 | K5525FSW.20* | K5525FBL.20* |
| 25 m | K5525FGR.25* | K5525FGE.25 | K5525FGN.25* | K5525FRT.25* | K5525FSW.25 | K5525FBL.25* |
| 30 m | K5525FGR.30 | K5525FGE.30 | K5525FGN.30* | K5525FRT.30* | K5525FSW.30 | K5525FBL.30 |
Belegung nach TIA/EIA 568B
Aussendurchmesser 6,5mm
Flammwidrig nach IEC-60332-1
Raucharm: IEC61034
Halogenfrei und Silikonfrei
Mit Längenaufdruck auf der Tülle
Kontakte vergoldet
